Arranging Fold Sheets on a Press Sheet
Apogee Impose enables you to drag and drop Fold Sheets onto a Press Sheet so you can rearrange the imposition interactively.

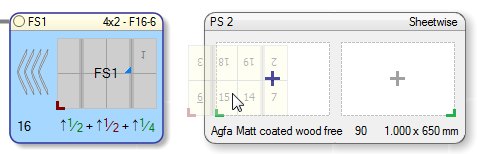

Assigning a Fold Sheet to a Press Sheet
1 If a Press Sheet is empty, drag the Fold Sheet onto the front of a Press Sheet and the front of the Fold Sheet will be assigned to the front of the Press Sheet and the back of the Fold Sheet to the back of the Press Sheet.
Dragging the Fold Sheet to the back of a Press Sheet flips the front of the Fold Sheet to the back of the Press Sheet.
 |
2 While dragging, press the spacebar to rotate the Fold Sheet counterclockwise in increments of 90 degrees.

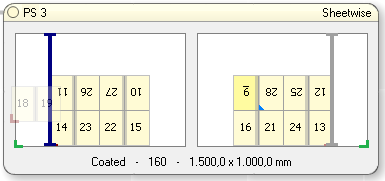

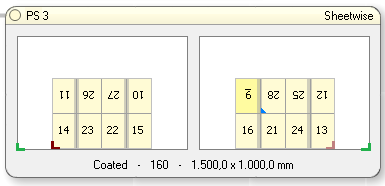

Rotating a Fold Sheet on a Press Sheet
1 Select the Fold Sheet you want to rotate by clicking it on the Press Sheet.
2 Drag the Fold Sheet until you see a dark blue insertion line.
3 With the Fold Sheet still selected, press the spacebar to rotate the Fold Sheet counterclockwise in increments of 90 degrees.
NOTE: The blue plus sign must be visible in order to rotate.
Deleting a Fold Sheet from a Press Sheet

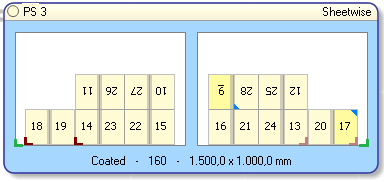

Click the front or back of a Fold Sheet and drag it out of the Press Sheet node or press Delete. Adding multiple Fold Sheets to a Press Sheet
1 Drag your first Fold Sheet onto the Press Sheet.
The Press Sheet Layout Rule determines the position of the first Fold Sheet, e.g. Bottom Center.
 |
2 Drag your second Fold Sheet onto the Press Sheet.
The blue insertion bar is displayed to indicate the proposed position and orientation of the Fold Sheet. The bar is grey to indicate the position on the Back.
 |
3 Drop the Fold Sheet where you want it on the Press Sheet, or with the Fold Sheet still selected, press the spacebar to rotate the Fold Sheet counterclockwise in increments of 90 degrees.
 |
doc. version 13.1.1
